Traffic Simulator
A traffic flow simulator based on the Nagel-Schreckenberg cellular automata model. It models multi-lane vehicle dynamics and lane-changing behaviour, and analyses traffic organisation using entropy-based metrics with visualisations of vehicle movement.
Overview
The simulator implements the classic NaSch model and extends it to multiple lanes with probabilistic lane-change rules. Throughput and spatial entropy metrics are tracked over time to characterise different traffic regimes (free flow, congested, jammed).
Tech Stack
- Python — core simulation
- NumPy — vectorised cellular automata updates
- Matplotlib — traffic flow visualisations
Demo

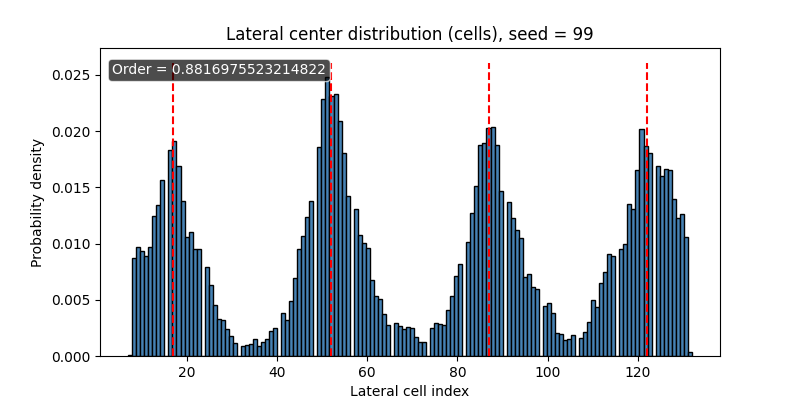

A randomized simulation showing ordered behavior (see lateral distribution on the right)

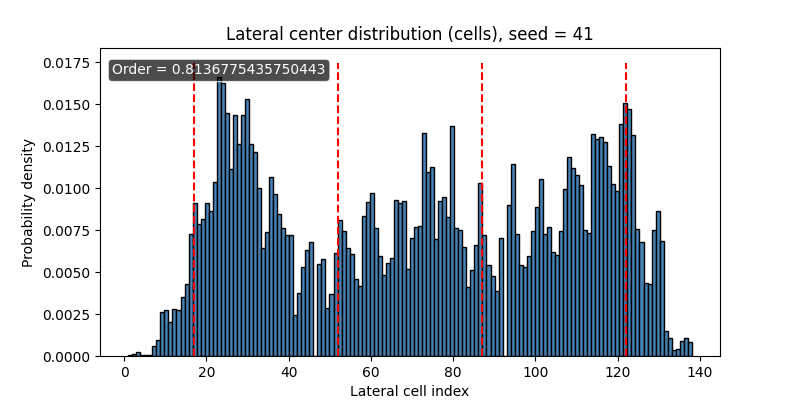

Another randomized simulation, this time with higher level of disorder (see lateral distribution on the right)
